ZXMN2F34MATA
| Part Number | ZXMN2F34MATA |
|---|---|
| Description | MOSFET N-CH 20V 4A DFN-2X2 |
| Category | Discrete Semiconductor Products |
| Manufacturer | Diodes Incorporated |
| In Stock | 10686 |
| Datasheet | Download |
Description
| Manufacturer | Diodes Incorporated |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | DFN322 |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 2.5A, 4.5V |
| Power Dissipation (Max) | 1.35W (Ta) |
| Packaging | Tape & Reel (TR) |

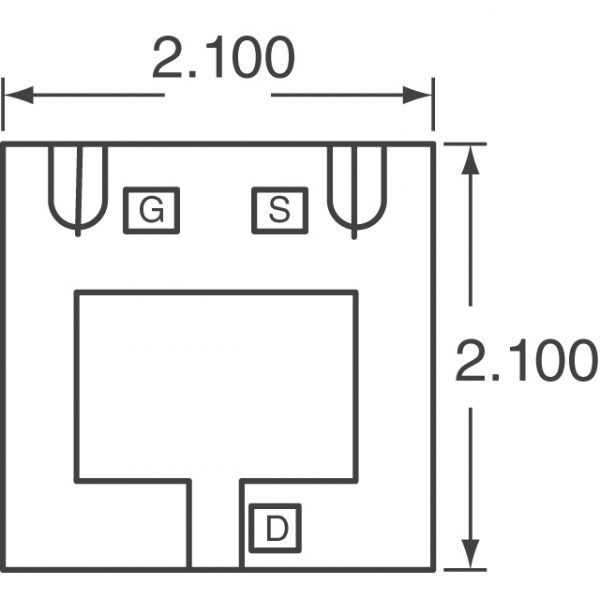

| Package / Case | 3-VDFN |
| Other Names | ZXMN2F34MATR |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 277pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 2.8nC @ 4.5V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | N-Channel 20V 4A (Ta) 1.35W (Ta) Surface Mount DFN322 |
| Current – Drain (Id) @ 25°C | 4A (Ta) |
