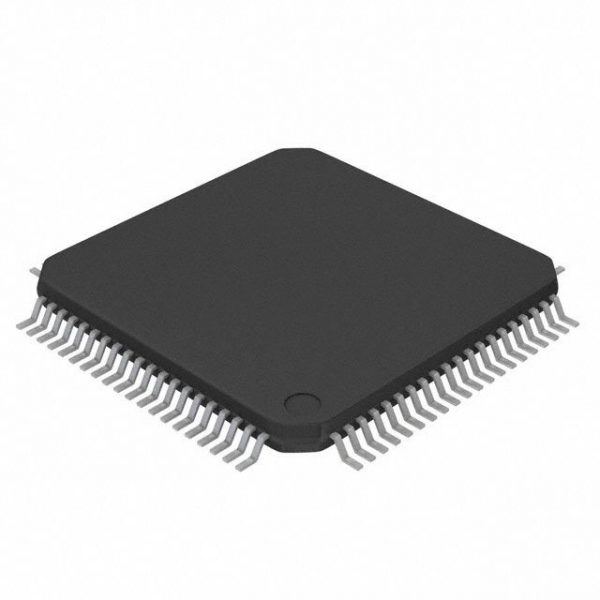

UPD78F0546AGK-GAK-AX
| Part Number | UPD78F0546AGK-GAK-AX |
|---|---|
| Description | IC MCU 8BIT 96KB FLASH 80LQFP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Renesas Electronics America |
| In Stock | 15513 |
| Datasheet | Download |
Description
| Manufacturer | Renesas Electronics America |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V |
| Speed | 20MHz |
| Series | 78K0/Kx2 |
| RAM Size | 5K x 8 |
| Program Memory Type | FLASH |
| Program Memory Size | 96KB (96K x 8) |
| Peripherals | LVD, POR, PWM, WDT |
| Packaging | Tray |
| Package / Case | 80-LQFP |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of I/O | 71 |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Detailed Description | 78K/0 78K0/Kx2 Microcontroller IC 8-Bit 20MHz 96KB (96K x 8) FLASH |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Core Processor | 78K/0 |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
