UNR92A1G0L
| Part Number | UNR92A1G0L |
|---|---|
| Description | TRANS PREBIAS NPN 125MW SSMINI3 |
| Category | Discrete Semiconductor Products |
| Manufacturer | Panasonic |
| In Stock | 19508 |
| Datasheet | Download |
Description
| Manufacturer | Panasonic |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Transistor Type | NPN – Pre-Biased |
| Supplier Device Package | SSMini3-F3 |
| Resistor – Emitter Base (R2) | 10 kOhms |
| Resistor – Base (R1) | 10 kOhms |
| Power – Max | 125mW |
| Packaging | Tape & Reel (TR) |

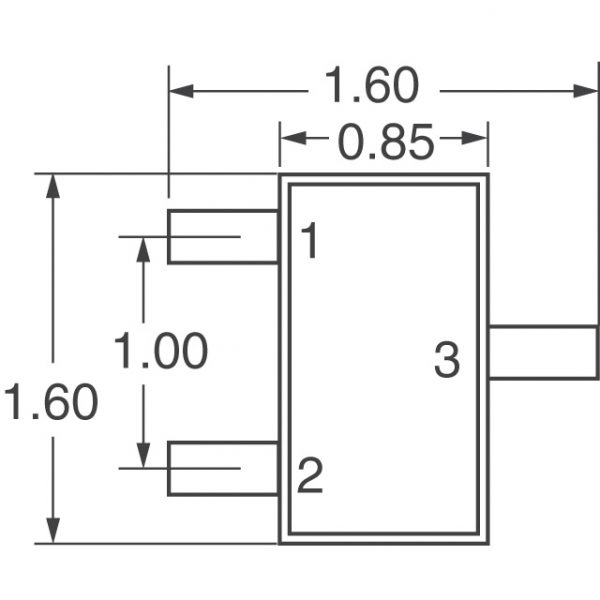

| Package / Case | SC-89, SOT-490 |
| Other Names | UNR92A1G0LTR |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Frequency – Transition | 150MHz |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN – Pre-Biased 50V 80mA 150MHz 125mW Surface Mount SSMini3-F3 |
| DC Current Gain (hFE) (Min) | 35 @ 5mA, 10V |
| Current – Collector Cutoff | 500nA |
| Current – Collector (Ic) (Max) | 80mA |
