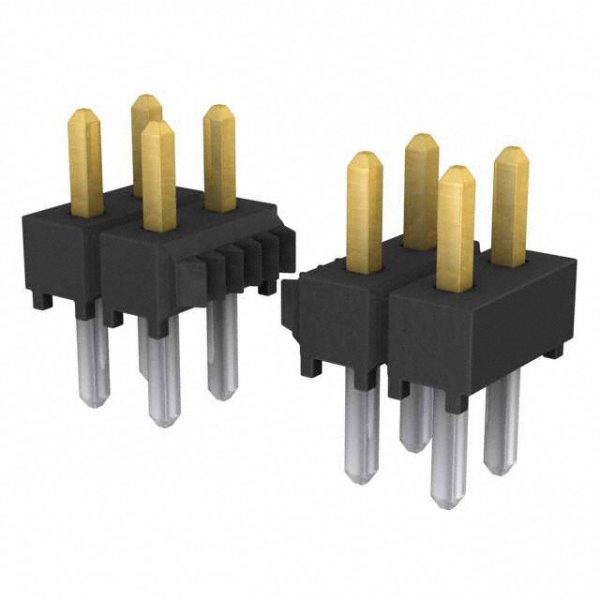

TSW-106-05-L-D
| Part Number | TSW-106-05-L-D |
|---|---|
| Description | CONN HEADER 12POS .100″ DL GOLD |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 8922 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Series | TSW |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.335″ (8.51mm) |
| Other Names | SAM1014-06 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 12 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.100″ (2.54mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 12 position 0.100″ (2.54mm) |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Post | 0.130″ (3.30mm) |
| Contact Length – Mating | 0.105″ (2.67mm) |
| Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header |
