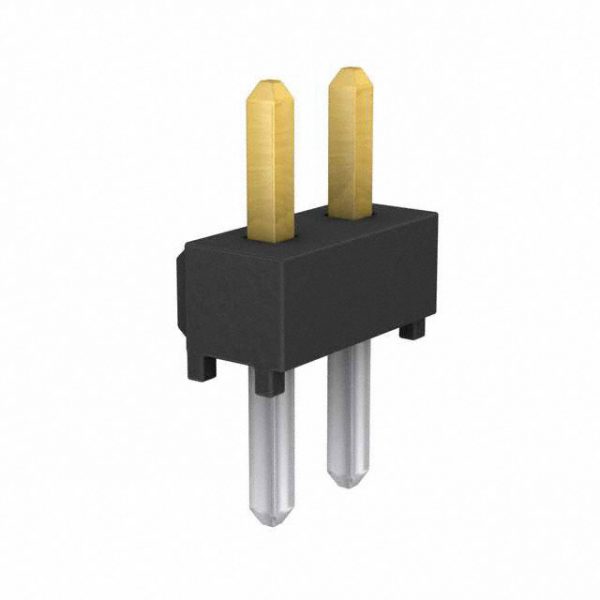

TSW-101-06-L-D

Part Number

Description

Manufacturer	Samtec, Inc.
Lead / RoHS Status	Lead free / RoHS Compliant
Termination	Solder
Style	Board to Board or Cable
Shrouding	Unshrouded
Series	TSW
Row Spacing – Mating	0.100″ (2.54mm)
Packaging	Bulk
Overall Contact Length	0.300″ (7.62mm)
Other Names	SAM1022-01
Operating Temperature	-55°C ~ 125°C
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	2
Mounting Type	Through Hole
Moisture Sensitivity Level	1 (Unlimited)
Material Flammability Rating	UL94 V-0
Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.100″ (2.54mm)
Insulation Color	Black
Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 2 position
Contact Type	Male Pin
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Length – Post	0.095″ (2.41mm)
Contact Length – Mating	0.105″ (2.67mm)
Finish Thickness – Mating	10.0µin (0.25µm)
Contact Finish – Post	Tin
Contact Finish – Mating	Gold
Connector Type	Header
