TL58XF100Q
| Part Number | TL58XF100Q |
|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Category | Switches |
| Manufacturer | E-Switch |
| In Stock | 14722 |
| Datasheet | Download |
Description
| Manufacturer | E-Switch |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination Style | PC Pin |
| Switch Travel | 0.25mm |
| Switch Function | Off-Mom |
| Series | TL58 |
| Packaging | Cut Tape (CT) |

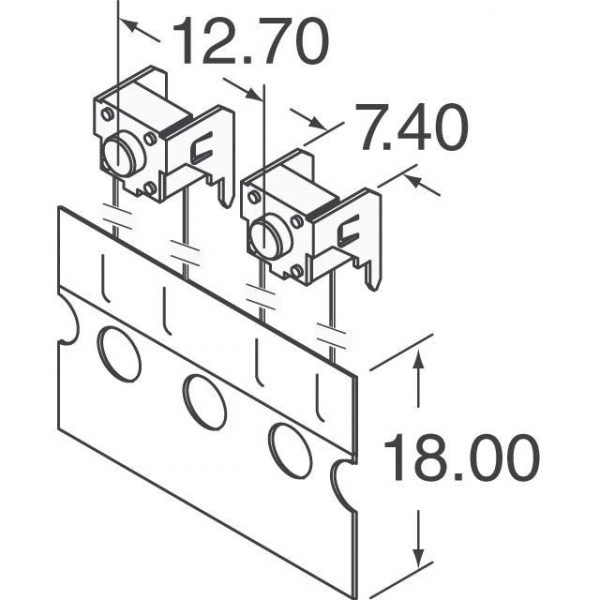

| Outline | 7.40mm x 7.10mm |
| Other Names | EG4596CT |
| Operating Temperature | -20°C ~ 70°C |
| Operating Force | 100gf |
| Mounting Type | Through Hole, Right Angle |
| Mechanical Life | 100,000 Cycles |
| Illumination | Non-Illuminated |
| Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO |
| Actuator Type | Standard |
| Actuator Orientation | Side Actuated |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | 4.75mm |
