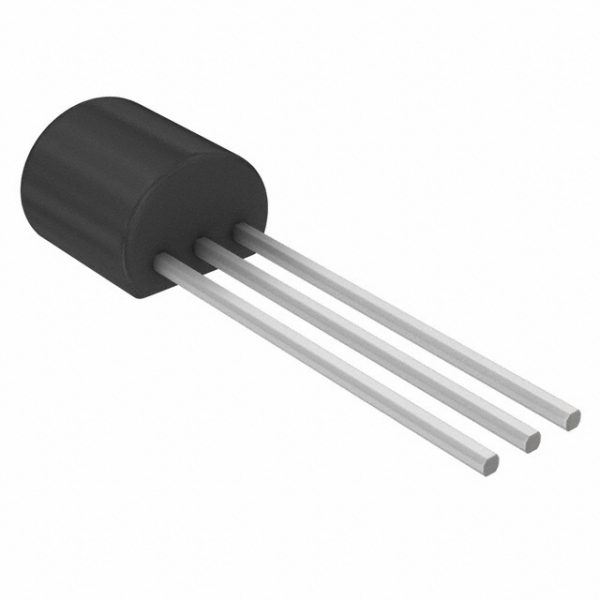

TL431CLP

Part Number	TL431CLP
Description	IC VREF SHUNT ADJ TO92-3
Category	Integrated Circuits (ICs)
Manufacturer	AMI Semiconductor / ON Semiconductor
In Stock	17629
Datasheet	Download

Category: Integrated Circuits (ICs)

Description

Description

Manufacturer	AMI Semiconductor / ON Semiconductor
Lead / RoHS Status	Contains lead / RoHS non-compliant
Voltage – Output (Min/Fixed)	2.495V
Voltage – Output (Max)	36V
Tolerance	±2.2%
Temperature Coefficient	50ppm/°C Typical
Supplier Device Package	TO-92-3
Reference Type	Shunt
Packaging	Bulk
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Output Type	Adjustable
Other Names	TL431CLPFS TL431CLPFS-ND TL431CLPOS
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Through Hole
Moisture Sensitivity Level	1 (Unlimited)
Detailed Description	Shunt Voltage Reference IC 36V ±2.2% 100mA TO-92-3
Current – Output	100mA
Current – Cathode	1mA
Base Part Number	TL431
