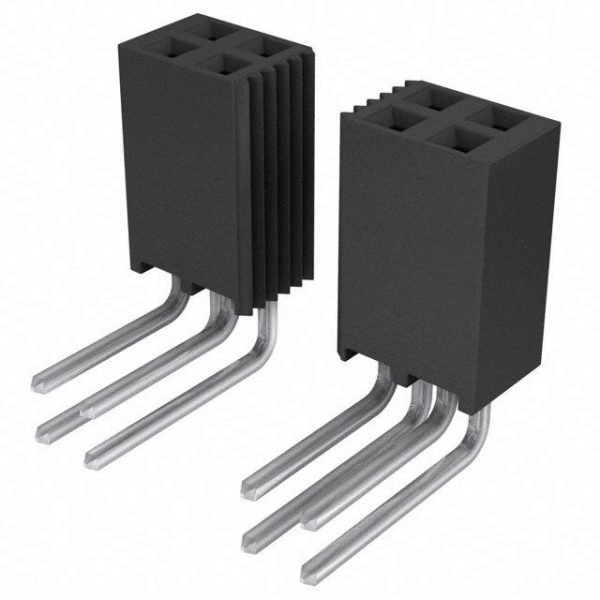

SSQ-142-03-T-D-RA
| Part Number | SSQ-142-03-T-D-RA |
|---|---|
| Description | CONN RCPT .100″ 84POS DL R/A TIN |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 9950 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 550VAC |
| Termination | Solder |
| Style | Board to Board or Cable |
| Series | SSQ |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | SAM1205-42 |
| Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 84 |
| Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.195″ (4.95mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | 84 Position Receptacle Connector 0.100″ (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | 6.3A per Contact |
| Contact Type | Forked |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Post | 0.300″ (7.62mm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Tin |
| Connector Type | Receptacle |
