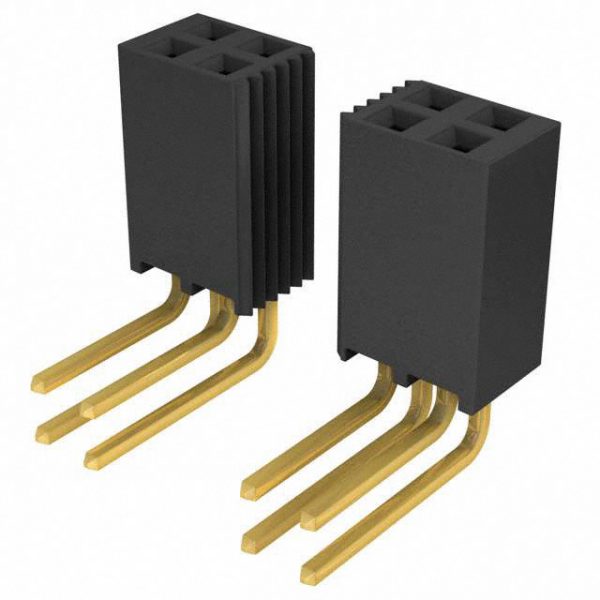

SSQ-140-03-G-D-RA

Part Number

Description

Manufacturer	Samtec, Inc.
Lead / RoHS Status	Lead free / RoHS Compliant
Voltage Rating	550VAC
Termination	Solder
Style	Board to Board or Cable
Series	SSQ
Row Spacing – Mating	0.100″ (2.54mm)
Pitch – Mating	0.100″ (2.54mm)
Packaging	Bulk
Other Names	SAM1197-40
Operating Temperature	-55°C ~ 125°C
Number of Rows	2
Number of Positions Loaded	All
Number of Positions	80
Mounting Type	Through Hole, Right Angle
Material Flammability Rating	UL94 V-0
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.195″ (4.95mm)
Insulation Color	Black
Fastening Type	Push-Pull
Detailed Description	80 Position Receptacle Connector 0.100″ (2.54mm) Through Hole, Right Angle Gold
Current Rating	6.3A per Contact
Contact Type	Forked
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Length – Post	0.300″ (7.62mm)
Contact Finish Thickness – Post	3.00µin (0.076µm)
Finish Thickness – Mating	20.0µin (0.51µm)
Contact Finish – Post	Gold
Contact Finish – Mating	Gold
Connector Type	Receptacle
