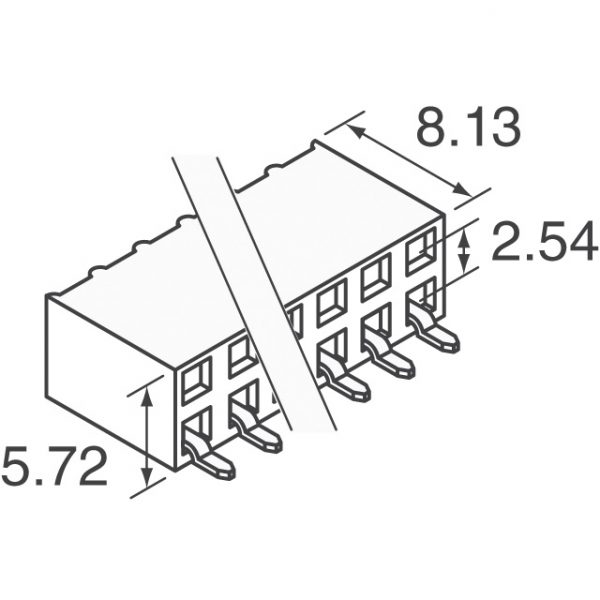

SSM-102-S-DH
| Part Number | SSM-102-S-DH |
|---|---|
| Description | CONN RCPT .100″ 4POS DUAL HORZ |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 13875 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Rating | 405VAC, 572VDC |
| Termination | Solder |
| Style | Board to Board or Cable |
| Series | SSM |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Tube |
| Other Names | SAM1149-02 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.225″ (5.72mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle Connector 0.100″ (2.54mm) Surface Mount, Right Angle Gold |
| Current Rating | 5.2A per Contact |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Finish Thickness – Mating | 30.0µin (0.76µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Receptacle |
