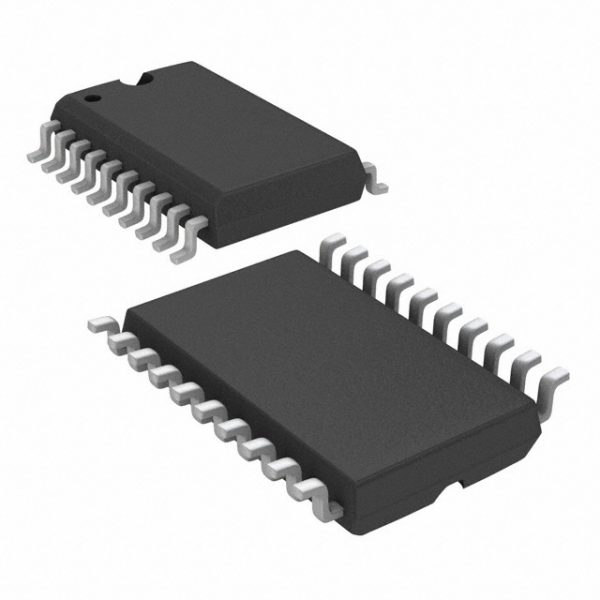

SN74LVCZ244ADWE4
| Part Number | SN74LVCZ244ADWE4 |
|---|---|
| Description | IC BUF NON-INVERT 3.6V 20SOIC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Luminary Micro / Texas Instruments |
| In Stock | 10508 |
| Datasheet | Download |
Description
| Manufacturer | Luminary Micro / Texas Instruments |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 2.7 V ~ 3.6 V |
| Supplier Device Package | 20-SOIC |
| Series | 74LVCZ |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295″, 7.50mm Width) |
| Output Type | 3-State |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Logic Type | Buffer, Non-Inverting |
| Detailed Description | Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SOIC |
| Current – Output High, Low | 24mA, 24mA |
| Base Part Number | 74LVCZ244 |
