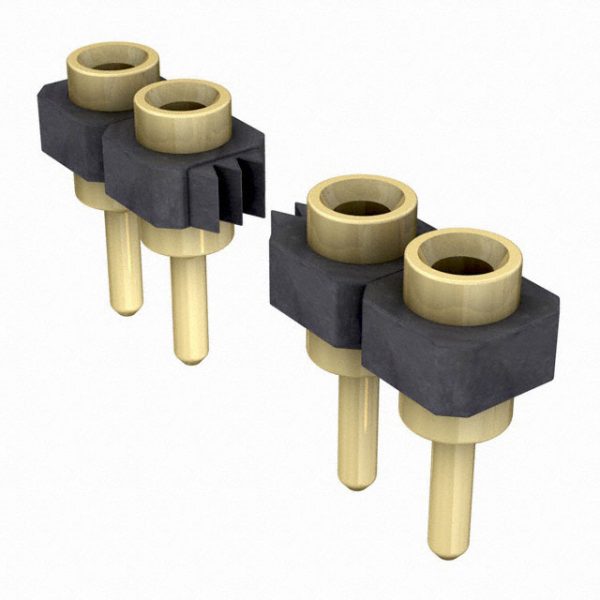

SL-117-G-10
| Part Number | SL-117-G-10 |
|---|---|
| Description | CONN RCPT .100″ 17POS GOLD PCB |
| Category | Connectors |
| Manufacturer | Samtec, Inc. |
| In Stock | 11793 |
| Datasheet | Download |
Description
| Manufacturer | Samtec, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board |
| Series | SL |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Tube |
| Other Names | SAM1102-17 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 17 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.122″ (3.10mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | 17 Position Receptacle Connector 0.100″ (2.54mm) Through Hole Gold |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Length – Post | 0.108″ (2.75mm) |
| Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Mating | Gold |
