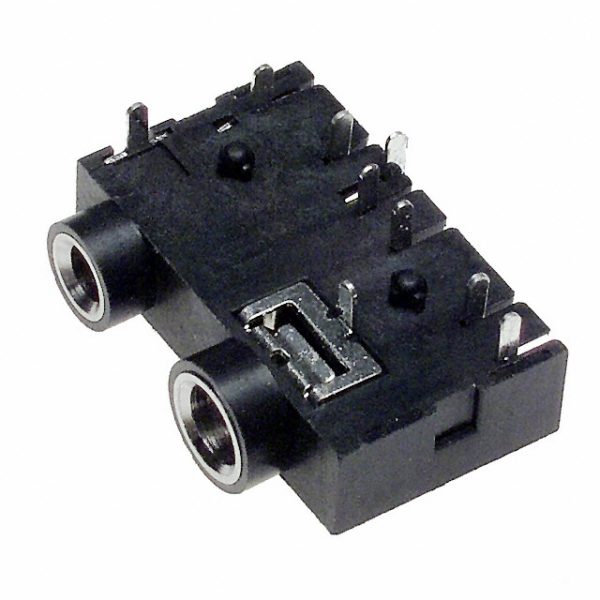

SJD-3201-54
| Part Number | SJD-3201-54 |
|---|---|
| Description | CONN JACK DUAL STEREO 2.5MM R/A |
| Category | Connectors |
| Manufacturer | CUI, Inc. |
| In Stock | 11266 |
| Datasheet | Download |
Description
| Manufacturer | CUI, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Rated | 16VDC |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded |
| Other Names | CP-320154 |
| Number of Positions/Contacts | 2 Sets of 3 Conductors, 9 Contacts |
| Mounting Type | Through Hole, Right Angle |
| Internal Switch(s) | Single Switch, Two Switches |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Gender | Female |
| Features | Board Guide |
| Detailed Description | 2.50mm (3/32″, Sub Mini, Miniature) – Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 300mA |
| Contact Material – Plating | Tin |
| Contact Material | Brass |
| Connector Type | Phone Jack, Dual |
| Body Material | Brass |
| Body Color | Black |
| Actual Diameter | 0.102″ (2.60mm), 0.142″ (3.60mm) |
