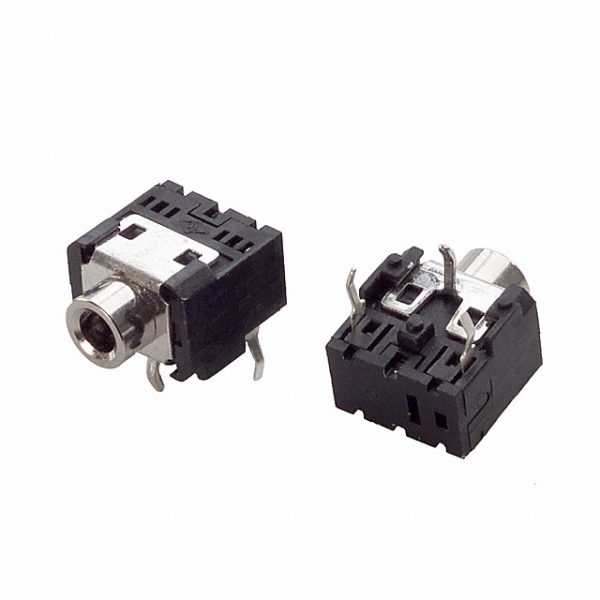

SJ-3543N
| Part Number | SJ-3543N |
|---|---|
| Description | CONN JACK STEREO 3.5MM R/A |
| Category | Connectors |
| Manufacturer | CUI, Inc. |
| In Stock | 9360 |
| Datasheet | Download |
Description
| Manufacturer | CUI, Inc. |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Rated | 12VDC |
| Termination | Kinked Pin |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded |
| Other Names | CP-3543N |
| Operating Temperature | -25°C ~ 85°C |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle |
| Mating Length/Depth | 0.551″ (14.00mm) |
| Internal Switch(s) | Does Not Contain Switch |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female |
| Detailed Description | 3.50mm (0.141″, 1/8″, Mini Plug) – Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin |
| Current Rating | 1A |
| Contact Material – Plating | Nickel |
| Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack |
| Body Material | Brass |
| Body Color | Black |
| Actual Diameter | 0.142″ (3.60mm) |
