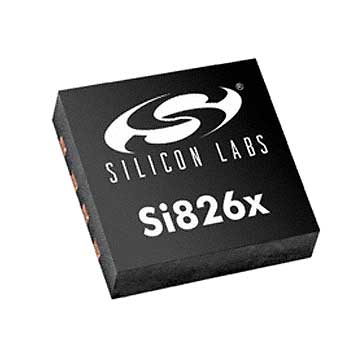

SI8711CD-B-IMR
| Part Number | SI8711CD-B-IMR |
|---|---|
| Description | DGTL ISO 5KV 1CH GEN PURP 8LGA |
| Category | Isolators |
| Manufacturer | Energy Micro (Silicon Labs) |
| In Stock | 17611 |
| Datasheet | Download |
Description
| Manufacturer | Energy Micro (Silicon Labs) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 3 V ~ 30 V |
| Voltage – Isolation | 5000Vrms |
| Type | General Purpose |
| Technology | Capacitive Coupling |
| Supplier Device Package | 8-LGA (10×12.5) |
| Rise / Fall Time (Typ) | 15ns, 5ns |
| Pulse Width Distortion (Max) | 20ns |
| Propagation Delay tpLH/tpHL | 60ns, 60ns |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VELGA |
| Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Isolated Power | No |
| Inputs – Side 1/Side 2 | Jan-00 |
| Detailed Description | General Purpose Digital Isolator 5000Vrms 1 Channel 1Mbps 20kV/µs CMTI 8-VELGA |
| Data Rate | 1Mbps |
| Transient Immunity (Min) | 20kV/µs |
| Channel Type | Unidirectional |
