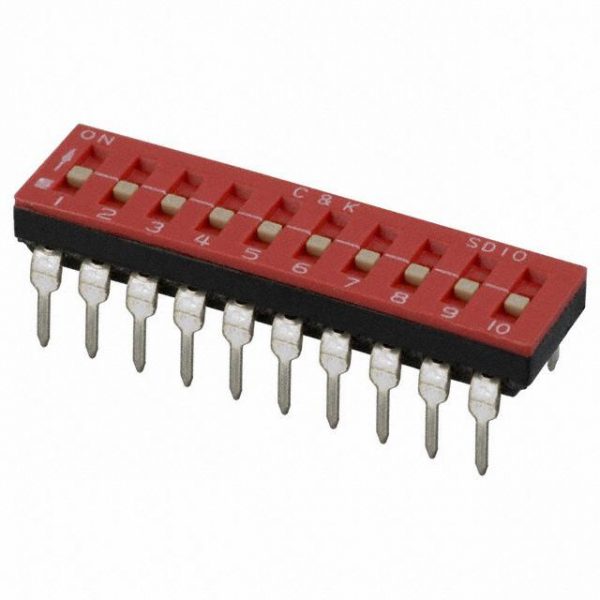

SD10H0K
Description
| Manufacturer | C&K |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Washable | Yes |
| Voltage Rating | 25VDC |
| Termination Style | PC Pin |
| Series | SD |
| Pitch | 0.100″ (2.54mm), Full |
| Packaging | Tube |
| Other Names | *SD10H0K CKN3072 SD10HOK |
| Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles |
| Length | 1.058″ (26.87mm) |
| Height Above Board | 0.178″ (4.52mm) |
| Features | Tape Seal |
| Electrical Life | 2,000 Cycles |
| Detailed Description | Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 25VDC |
| Current Rating | 100mA |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Circuit | SPST |
| Body Material | Polybutylene Terephthalate (PBT) |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
