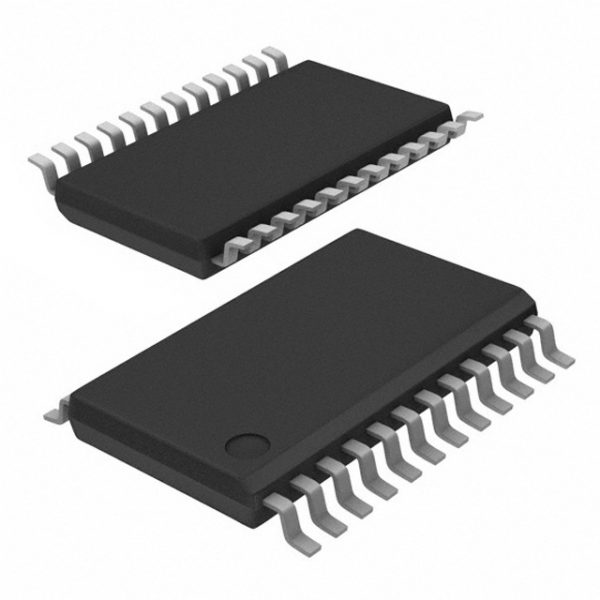

SC2544TSTRT
| Part Number | SC2544TSTRT |
|---|---|
| Description | IC REG CTRLR BUCK 24TSSOP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Semtech |
| In Stock | 14198 |
| Datasheet | Download |
Description
| Manufacturer | Semtech |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 4.5 V ~ 28 V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 24-TSSOP |
| Packaging | Cut Tape (CT) |
| Package / Case | 24-TSSOP (0.173″, 4.40mm Width) |
| Output Type | Transistor Driver |
| Output Phases | 2 |
| Output Configuration | Positive |
| Other Names | SC2544TSCT |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Number of Outputs | 2 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Function | Step-Down |
| Frequency – Switching | 100kHz ~ 300kHz |
| Duty Cycle (Max) | 90% |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-TSSOP |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Clock Sync | No |
