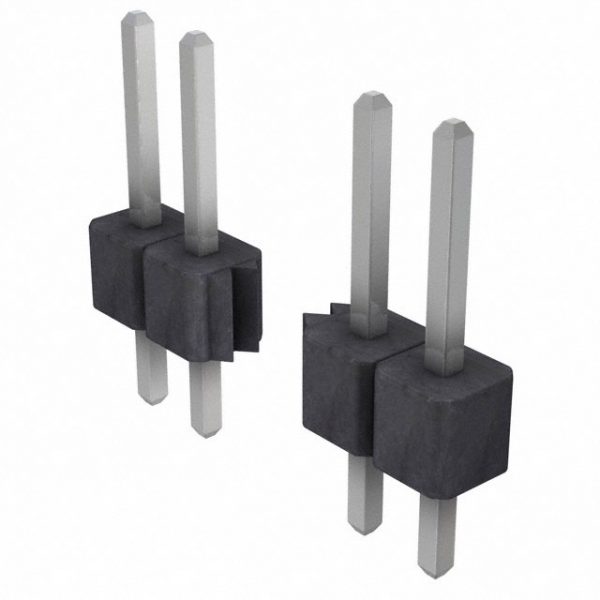

PTC07SAAN
| Part Number | PTC07SAAN |
|---|---|
| Description | CONN HEADER .100 SINGL STR 7POS |
| Category | Connectors |
| Manufacturer | Sullins Connector Solutions |
| In Stock | 7813 |
| Datasheet | Download |
Description
| Manufacturer | Sullins Connector Solutions |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.450″ (11.43mm) |
| Other Names | PTC12-07-ND PTC1207-ND S1012-07 |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 7 |
| Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic, Polyester |
| Insulation Height | 0.100″ (2.54mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 7 position 0.100″ (2.54mm) |
| Current Rating | 3A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Copper Alloy |
| Contact Length – Post | 0.120″ (3.05mm) |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Contact Finish Thickness – Post | 100.0µin (2.54µm) |
| Finish Thickness – Mating | 100.0µin (2.54µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Tin |
| Connector Type | Header |
