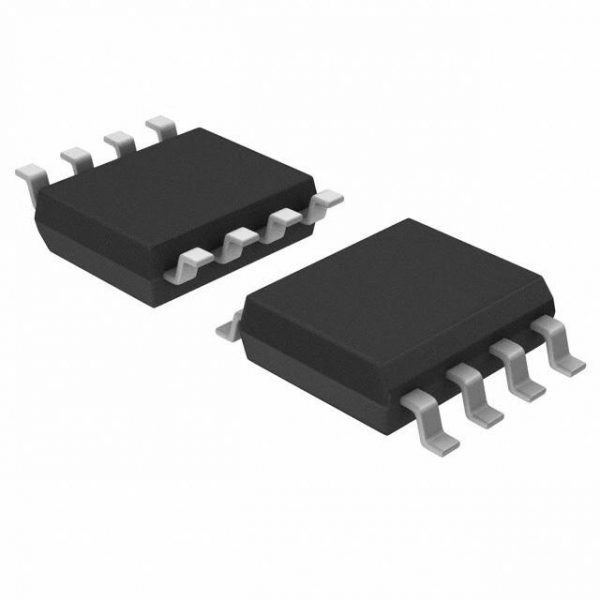

PS9814-1-F3-A
| Part Number | PS9814-1-F3-A |
|---|---|
| Description | OPTOISO 2.5KV OPEN COLL 8SSOP |
| Category | Isolators |
| Manufacturer | CEL (California Eastern Laboratories) |
| In Stock | 6112 |
| Datasheet | Download |
Description
| Manufacturer | CEL (California Eastern Laboratories) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 4.5 V ~ 5.5 V |
| Voltage – Isolation | 2500Vrms |
| Voltage – Forward (Vf) (Typ) | 1.65V |
| Supplier Device Package | 8-SSOP |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Propagation Delay tpLH/tpHL | 75ns, 75ns |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
| Output Type | Open Collector |
| Other Names | PS9814-1CT PS98141F3A |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Inputs – Side 1/Side 2 | Jan-00 |
| Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 1 Channel 10kV/µs CMTI 8-SSOP |
| Data Rate | 10Mbps |
| Current – Output / Channel | 25mA |
| Current – DC Forward (If) (Max) | 20mA |
| Transient Immunity (Min) | 10kV/µs |
