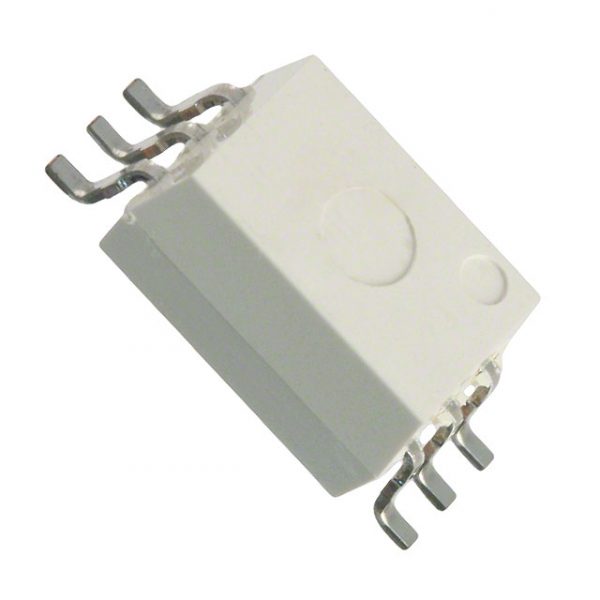

PS9317L2-AX
| Part Number | PS9317L2-AX |
|---|---|
| Description | OPTOISO 5KV OPEN COLL 6DIP GW |
| Category | Isolators |
| Manufacturer | CEL (California Eastern Laboratories) |
| In Stock | 6188 |
| Datasheet | Download |
Description
| Manufacturer | CEL (California Eastern Laboratories) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 4.5 V ~ 5.5 V |
| Voltage – Isolation | 5000Vrms |
| Voltage – Forward (Vf) (Typ) | 1.56V |
| Supplier Device Package | 6-SDIP Gull Wing |
| Series | NEPOC |
| Rise / Fall Time (Typ) | 20ns, 5ns |
| Propagation Delay tpLH/tpHL | 75ns, 75ns |
| Packaging | Bulk |
| Package / Case | 6-SOIC (0.268″, 6.80mm Width) |
| Output Type | Open Collector |
| Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Inputs – Side 1/Side 2 | Jan-00 |
| Input Type | DC |
| Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 15kV/µs CMTI 6-SDIP Gull Wing |
| Data Rate | 10Mbps |
| Current – Output / Channel | 25mA |
| Current – DC Forward (If) (Max) | 30mA |
| Transient Immunity (Min) | 15kV/µs |
