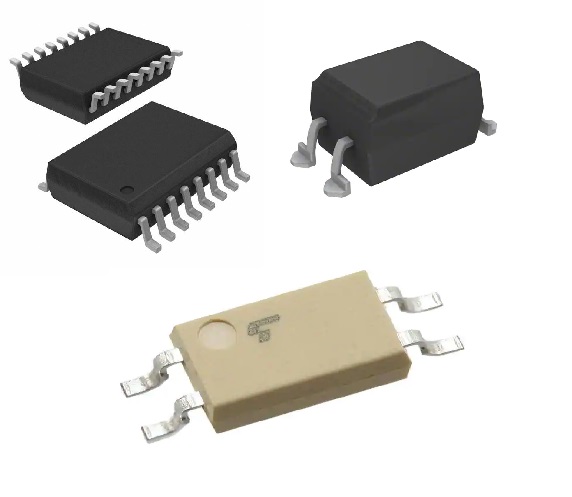

PS9309L2-AX
| Part Number | PS9309L2-AX |
|---|---|
| Description | OPTOISO 5KV PUSH PULL 6SDIP |
| Category | Isolators |
| Manufacturer | CEL (California Eastern Laboratories) |
| In Stock | 12458 |
| Datasheet | Download |
Description
| Manufacturer | CEL (California Eastern Laboratories) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 4.5 V ~ 20 V |
| Voltage – Isolation | 5000Vrms |
| Voltage – Forward (Vf) (Typ) | 1.55V |
| Supplier Device Package | 6-SDIP |
| Rise / Fall Time (Typ) | 24ns, 3.2ns |
| Packaging | Bulk |
| Package / Case | 6-SOIC (0.268″, 6.80mm Width) |
| Output Type | Push-Pull, Totem Pole |
| Operating Temperature | -40°C ~ 110°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Inputs – Side 1/Side 2 | Jan-00 |
| Input Type | DC |
| Detailed Description | Logic Output Optoisolator 1Mbps Push-Pull, Totem Pole 5000Vrms 1 Channel 15kV/µs CMTI 6-SDIP |
| Data Rate | 1Mbps |
| Current – Output / Channel | 25mA |
| Current – DC Forward (If) (Max) | 20mA |
