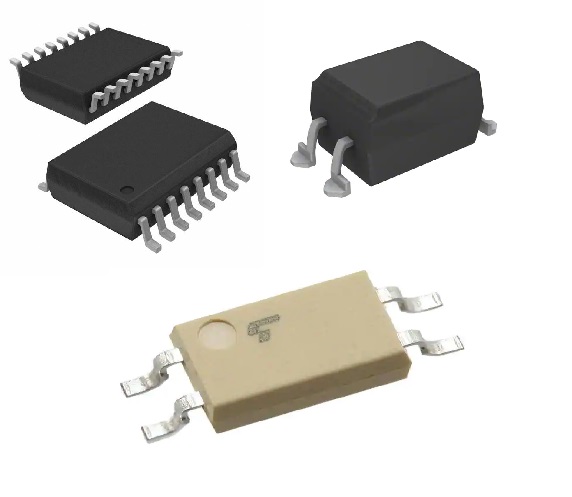

PS9307AL2-AX
| Part Number | PS9307AL2-AX |
|---|---|
| Description | OPTOISO 5KV 1CH GATE DRIVER 6SMD |
| Category | Isolators |
| Manufacturer | CEL (California Eastern Laboratories) |
| In Stock | 17357 |
| Datasheet | Download |
Description
| Manufacturer | CEL (California Eastern Laboratories) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 10 V ~ 30 V |
| Voltage – Isolation | 5000Vrms |
| Voltage – Forward (Vf) (Typ) | 1.56V |
| Technology | Optical Coupling |
| Supplier Device Package | 6-SMD |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 50ns |
| Propagation Delay tpLH/tpHL | 150ns, 150ns |
| Packaging | Strip |
| Package / Case | 6-SOIC (0.268″, 6.80mm Width) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Detailed Description | 600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SMD |
| Current – Peak Output | 600mA |
| Current – Output High, Low | 400mA, 400mA |
| Current – DC Forward (If) (Max) | 25mA |
| Transient Immunity (Min) | 50kV/µs |
