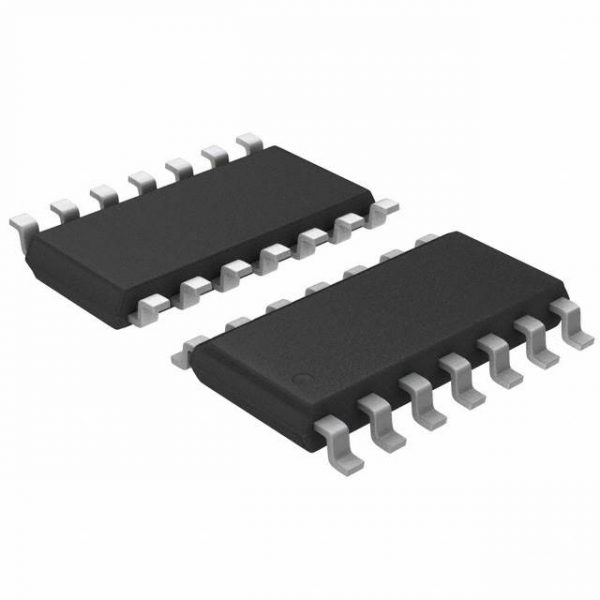

PS4066ACSD
| Part Number | PS4066ACSD |
|---|---|
| Description | IC QUAD SPST ANALOG SW 14-SOIC |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Diodes Incorporated |
| In Stock | 8991 |
| Datasheet | Download |
Description
| Manufacturer | Diodes Incorporated |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Supply, Single (V+) | 3 V ~ 16 V |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| Switch Circuit | SPST – NO |
| Supplier Device Package | 14-SOIC |
| Packaging | Tube |
| Package / Case | 14-SOIC (0.154″, 3.90mm Width) |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 45 Ohm |
| Number of Circuits | 4 |
| Multiplexer/Demultiplexer | 1:01 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Detailed Description | 4 Circuit IC Switch 1:1 45 Ohm 14-SOIC |
| Current – Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -86dB @ 1MHz |
| Charge Injection | 2pC |
| Channel-to-Channel Matching | 500 mOhm |
| Channel Capacitance | 9pF, 9pF |
| Base Part Number | PS4066 |
| -3db Bandwidth | 100MHz |
