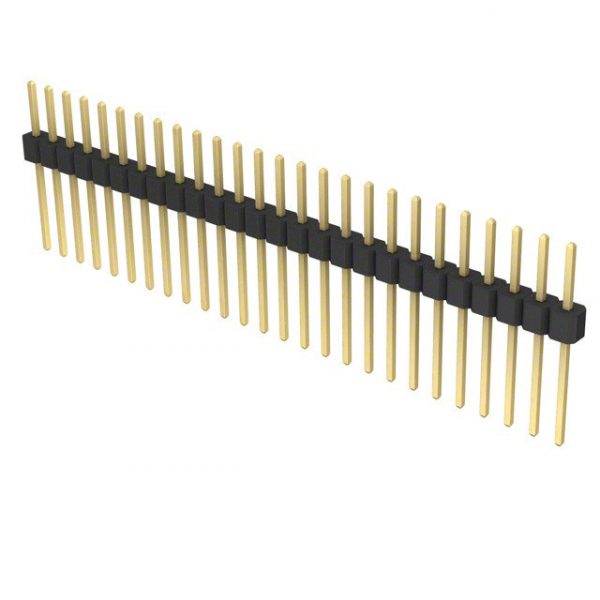

PRPC026SADN-RC
| Part Number | PRPC026SADN-RC |
|---|---|
| Description | CONN HEADER .100″ SNGL STR 26POS |
| Category | Connectors |
| Manufacturer | Sullins Connector Solutions |
| In Stock | 13121 |
| Datasheet | Download |
Description
| Manufacturer | Sullins Connector Solutions |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Overall Contact Length | 0.748″ (19.01mm) |
| Other Names | S1041EC-26 S9519E-26 S9519E-26-ND |
| Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 |
| Number of Positions Loaded | All |
| Number of Positions | 26 |
| Mounting Type | Through Hole |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.098″ (2.50mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 26 position 0.100″ (2.54mm) |
| Current Rating | 3A per Contact |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Brass |
| Contact Length – Post | 0.420″ (10.67mm) |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Contact Finish Thickness – Post | Flash |
| Contact Finish – Post | Gold |
| Contact Finish – Mating | Gold |
| Connector Type | Header, Breakaway |
