PMD1207PTB1-A.(2).GN

Part Number

Description

Manufacturer	Sunon
Lead / RoHS Status	Lead free / RoHS Compliant
Width	25.00mm
Weight	0.198 lb (89.81g)
Voltage Range	6 ~ 13.8VDC
Voltage – Rated	12VDC
Termination	2 Wire Leads
Static Pressure	0.360 in H2O (89.7 Pa)

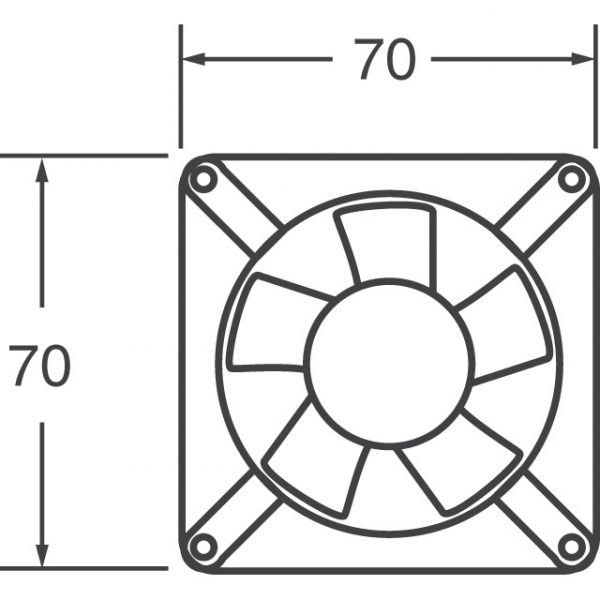

Size / Dimension	Square – 70mm L x 70mm H
Series	PMD
RPM	5100 RPM
Power (Watts)	4.40W
Other Names	259-1410 PMD1207PTB1-A (2).GN
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Noise	45.0 dB(A)
Material – Frame	Polybutylene Terephthalate (PBT)
Material – Blade	Polybutylene Terephthalate (PBT)
Fan Type	Tubeaxial
Current Rating	0.370A
Bearing Type	Ball
Approvals	CE, CUR, TUV, UL
Air Flow	49.0 CFM (1.37m³/min)
