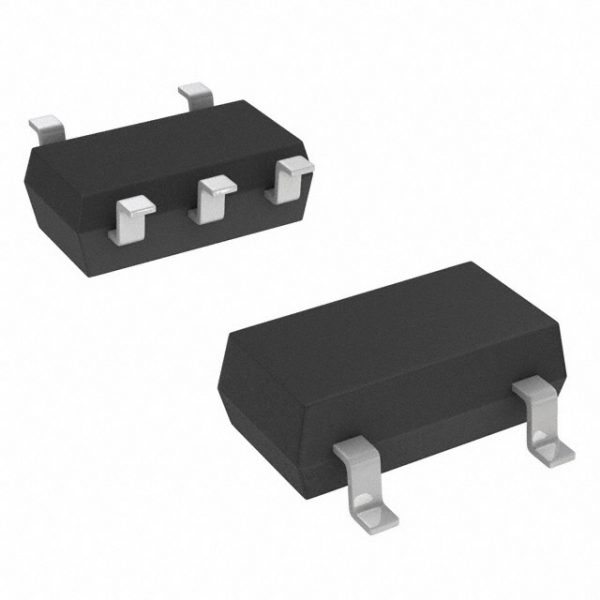

PI5PD2065TAEX
| Part Number | PI5PD2065TAEX |
|---|---|
| Description | IC POWER DIST USB 2.3A 5SOT23 |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Diodes Incorporated |
| In Stock | 9564 |
| Datasheet | Download |
Description
| Manufacturer | Diodes Incorporated |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | Not Required |
| Voltage – Load | 2.7 V ~ 5.5 V |
| Switch Type | USB Switch |
| Supplier Device Package | SOT-23-5 |
| Rds On (Typ) | 70 mOhm |
| Ratio – Input:Output | 1:01 |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | N-Channel |
| Output Configuration | High Side |
| Other Names | PI5PD2065TAEXTR |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Interface | On/Off |
| Input Type | Non-Inverting |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Current – Output (Max) | 1.5A |
| Base Part Number | PI5PD2065 |
