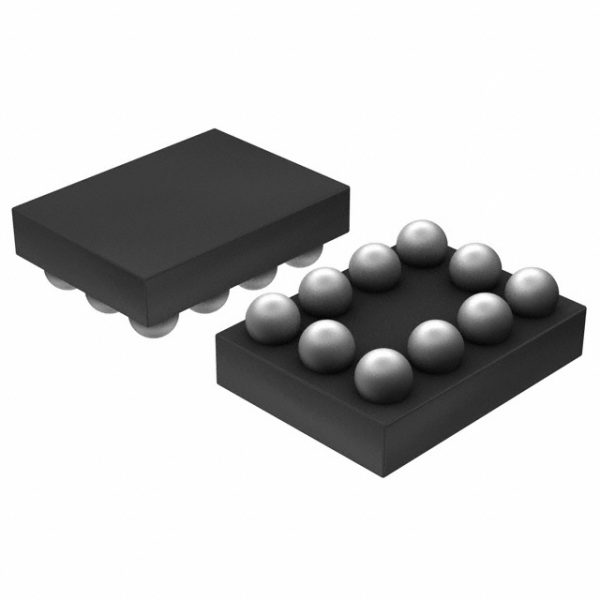

PI5A4684GAEX
| Part Number | PI5A4684GAEX |
|---|---|
| Description | IC SWITCH DUAL SPDT 10CSP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Diodes Incorporated |
| In Stock | 17682 |
| Datasheet | Download |
Description
| Manufacturer | Diodes Incorporated |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Switch Time (Ton, Toff) (Max) | 60ns, 20ns |
| Switch Circuit | SPDT |
| Supplier Device Package | 10-CSP (1.55×2.07) |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, CSPBGA |
| Other Names | PI5A4684GAEXTR |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 600 mOhm |
| Number of Circuits | 2 |
| Multiplexer/Demultiplexer | 2:01 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Detailed Description | 2 Circuit IC Switch 2:1 600 mOhm 10-CSP (1.55×2.07) |
| Current – Leakage (IS(off)) (Max) | 80nA |
| Crosstalk | -70dB @ 100kHz |
| Charge Injection | 54pC |
| Channel-to-Channel Matching | 10 mOhm |
| Channel Capacitance | 84pF |
| Base Part Number | PI5A4684 |
| -3db Bandwidth | 27MHz |
