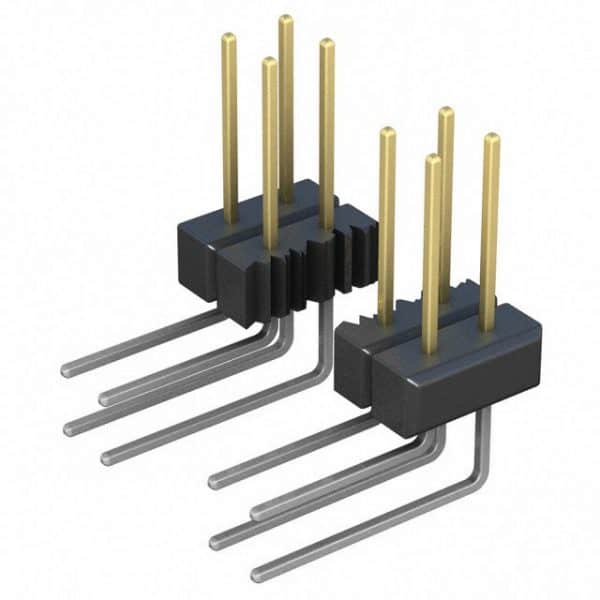

PBC32DBCN
| Part Number | PBC32DBCN |
|---|---|
| Description | CONN HEADER .100 DUAL R/A 64POS |
| Category | Connectors |
| Manufacturer | Sullins Connector Solutions |
| In Stock | 14313 |
| Datasheet | Download |
Description
| Manufacturer | Sullins Connector Solutions |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Termination | Solder |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Row Spacing – Mating | 0.100″ (2.54mm) |
| Pitch – Mating | 0.100″ (2.54mm) |
| Packaging | Bulk |
| Other Names | S2131E-32 |
| Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 |
| Number of Positions Loaded | All |
| Number of Positions | 64 |
| Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.240″ (6.10mm) |
| Insulation Color | Black |
| Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 64 position 0.100″ (2.54mm) |
| Current Rating | 3A |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Length – Post | 0.300″ (7.62mm) |
| Contact Length – Mating | 0.230″ (5.84mm) |
| Contact Finish Thickness – Post | 100.0µin (2.54µm) |
| Finish Thickness – Mating | 10.0µin (0.25µm) |
| Contact Finish – Post | Tin |
| Contact Finish – Mating | Gold |
| Connector Type | Header, Breakaway |
