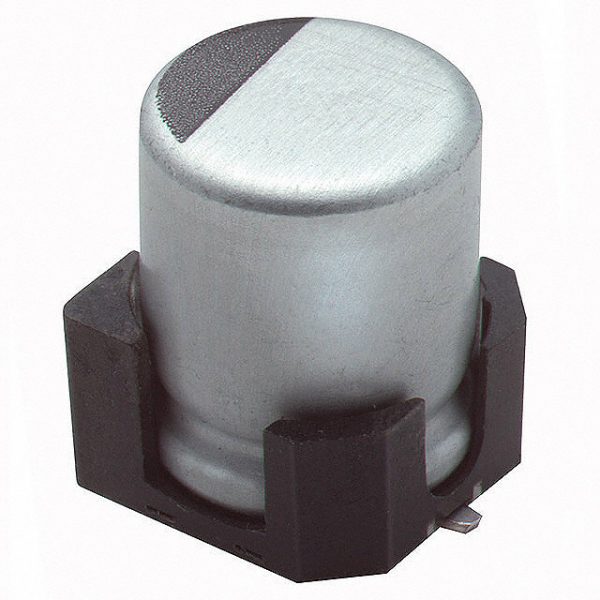

MZA6.3VC47RME61TP
| Part Number | MZA6.3VC47RME61TP |
|---|---|
| Description | CAP ALUM 47UF 20% 6.3V SMD |
| Category | Capacitors |
| Manufacturer | Nippon Chemi-Con |
| In Stock | 8623 |
| Datasheet | Download |
Description
| Manufacturer | Nippon Chemi-Con |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Rated | 6.3V |
| Tolerance | ±20% |
| Surface Mount Land Size | 0.209″ L x 0.209″ W (5.30mm x 5.30mm) |
| Size / Dimension | 0.197″ Dia (5.00mm) |
| Series | MZA |
| Ripple Current @ High Frequency | 160mA @ 100kHz |
| Polarization | Polar |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can – SMD |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Impedance | 700 mOhms |
| Height – Seated (Max) | 0.228″ (5.80mm) |
| Equivalent Series Resistance | 57 mOhm @ 120Hz |
| Detailed Description | 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can – SMD 57 mOhm @ 120Hz 2000 Hrs @ 105°C |
| Capacitance | 47µF |
| Applications | General Purpose |
