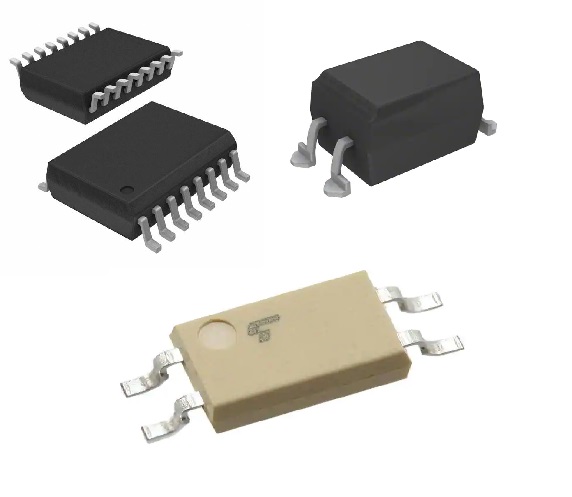

MOC8107S
| Part Number | MOC8107S |
|---|---|
| Description | OPTOISOLATOR 5.3KV TRANS 6-SMD |
| Category | Isolators |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 6789 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Output (Max) | 70V |
| Voltage – Isolation | 5300Vrms |
| Voltage – Forward (Vf) (Typ) | 1.15V |
| Vce Saturation (Max) | 400mV |
| Turn On / Turn Off Time (Typ) | 2µs, 3µs |
| Supplier Device Package | 6-SMD |
| Rise / Fall Time (Typ) | 1µs, 2µs |
| Packaging | Tube |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Transistor |
| Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 5300Vrms 1 Channel 6-SMD |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 300% @ 10mA |
| Current – Output / Channel | 50mA |
| Current – DC Forward (If) (Max) | 100mA |
