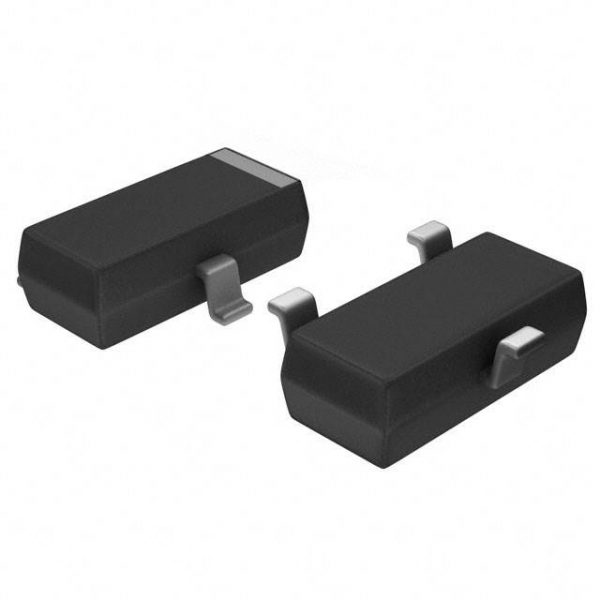

MMUN2213LT1
| Part Number | MMUN2213LT1 |
|---|---|
| Description | TRANS PREBIAS NPN 246MW SOT23-3 |
| Category | Discrete Semiconductor Products |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 7411 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Collector Emitter | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Transistor Type | NPN – Pre-Biased |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Resistor – Emitter Base (R2) | 47 kOhms |
| Resistor – Base (R1) | 47 kOhms |
| Power – Max | 246mW |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | MMUN2213LT1OSCT |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN – Pre-Biased 50V 100mA 246mW Surface Mount SOT-23-3 (TO-236) |
| DC Current Gain (hFE) (Min) | 80 @ 5mA, 10V |
| Current – Collector Cutoff | 500nA |
| Current – Collector (Ic) (Max) | 100mA |
| Base Part Number | MMUN22**L |
