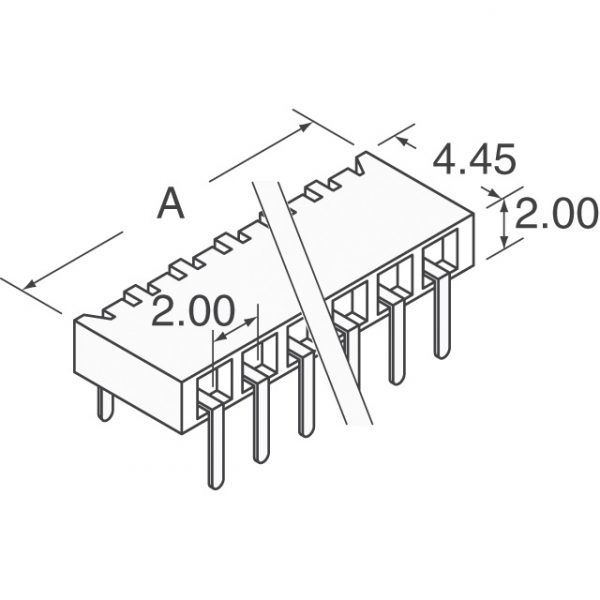

MMS-112-01-L-SH

Part Number

Description

Manufacturer	Samtec, Inc.
Lead / RoHS Status	Lead free / RoHS Compliant
Termination	Solder
Style	Board to Board or Cable
Series	MMS
Pitch – Mating	0.079″ (2.00mm)
Packaging	Tube
Other Names	SAM1229-12
Operating Temperature	-55°C ~ 125°C
Number of Rows	1
Number of Positions Loaded	All
Number of Positions	12
Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level	1 (Unlimited)
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.079″ (2.00mm)
Insulation Color	Black
Fastening Type	Push-Pull
Detailed Description	12 Position Receptacle Connector 0.079″ (2.00mm) Through Hole, Right Angle Gold
Current Rating	3.9A per Contact
Contact Type	Female Socket
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Length – Post	0.120″ (3.05mm)
Finish Thickness – Mating	10.0µin (0.25µm)
Contact Finish – Post	Tin
Contact Finish – Mating	Gold
