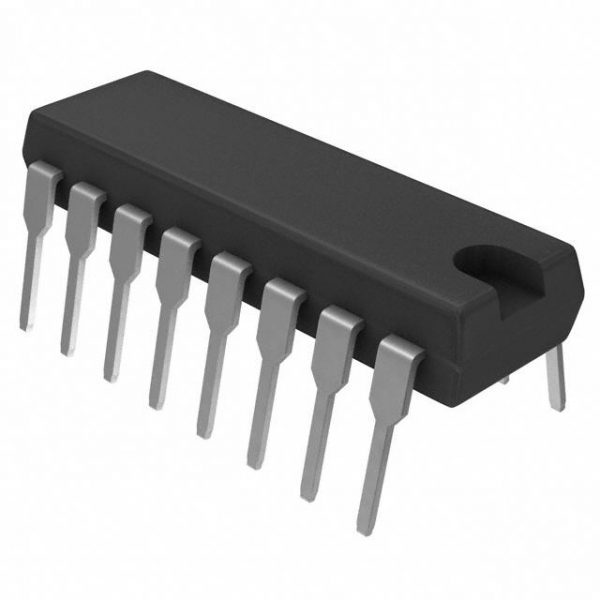

MC74ACT157NG
| Part Number | MC74ACT157NG |
|---|---|
| Description | IC MUX QUAD 2INPUT HS 16-DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 19937 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage Supply Source | Single Supply |
| Voltage – Supply | 4.5 V ~ 5.5 V |
| Type | Multiplexer |
| Supplier Device Package | 16-DIP |
| Series | 74ACT |
| Packaging | Tube |
| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Independent Circuits | 1 |
| Detailed Description | Multiplexer 4 x 2:1 16-DIP |
| Current – Output High, Low | 24mA, 24mA |
| Circuit | 4 x 2:1 |
| Base Part Number | 74ACT157 |
