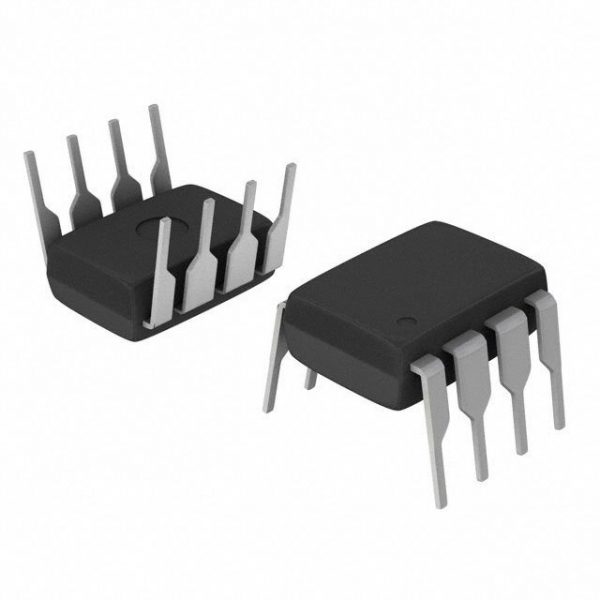

MAX765EPA
| Part Number | MAX765EPA |
|---|---|
| Description | IC REG BCK BST INV ADJ/-12V 8DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Maxim Integrated |
| In Stock | 19094 |
| Datasheet | Download |
Description
| Manufacturer | Maxim Integrated |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Output (Min/Fixed) | -1V (-12V) |
| Voltage – Output (Max) | 16V |
| Voltage – Input (Min) | 3V |
| Voltage – Input (Max) | 16V |
| Topology | Buck, Boost |
| Synchronous Rectifier | No |
| Supplier Device Package | 8-PDIP |
| Packaging | Tube |
| Package / Case | 8-DIP (0.300″, 7.62mm) |
| Output Type | Adjustable (Fixed) |
| Output Configuration | Negative |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Mounting Type | Through Hole |
| Function | Step-Up/Step-Down |
| Frequency – Switching | 300kHz |
| Detailed Description | Buck-Boost Switching Regulator IC Negative Adjustable (Fixed) -1V (-12V) 1 Output 120mA 8-DIP (0.300″, 7.62mm) |
| Current – Output | 120mA |
| Base Part Number | MAX765 |
