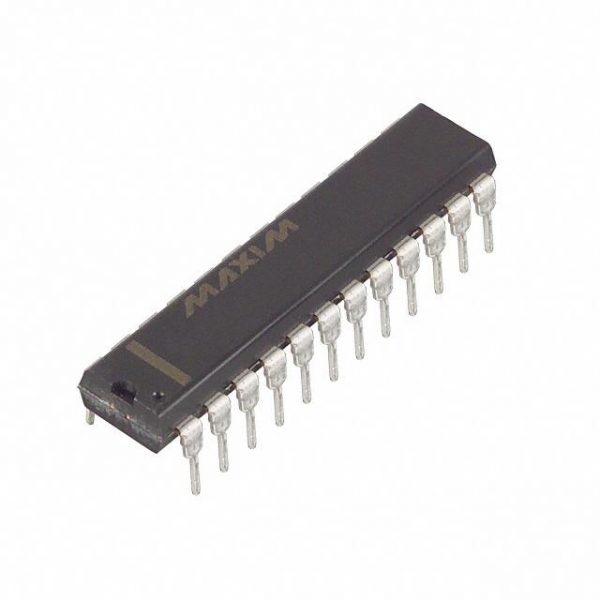

MAX503CNG
| Part Number | MAX503CNG |
|---|---|
| Description | IC DAC PARA-IN V-OUT 10BIT 24DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Maxim Integrated |
| In Stock | 5889 |
| Datasheet | Download |
Description
| Manufacturer | Maxim Integrated |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Supply, Digital | 5V |
| Voltage – Supply, Analog | ±5V |
| Supplier Device Package | 24-PDIP |
| Settling Time | 25µs (Typ) |
| Reference Type | External, Internal |
| Packaging | Tube |
| Package / Case | 24-DIP (0.300″, 7.62mm) |
| Output Type | Voltage – Buffered |
| Operating Temperature | 0°C ~ 70°C |
| Number of D/A Converters | 1 |
| Number of Bits | 10 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Detailed Description | 10 Bit Digital to Analog Converter 1 24-PDIP |
| Data Interface | Parallel |
| Base Part Number | MAX503 |
| Architecture | R-2R |
