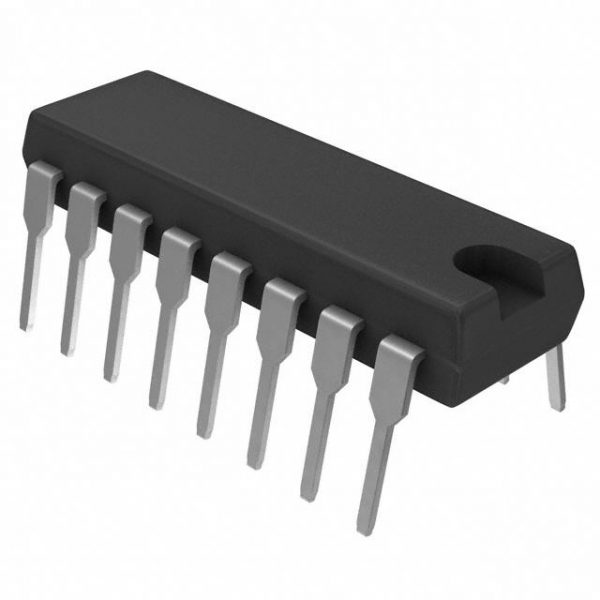

MAX4567CPE
| Part Number | MAX4567CPE |
|---|---|
| Description | IC SW DUAL VIDEO BIDIRECT 16-DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Maxim Integrated |
| In Stock | 10249 |
| Datasheet | Download |
Description
| Manufacturer | Maxim Integrated |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Supply, Single (V+) | 2.7 V ~ 12 V |
| Voltage – Supply, Dual (V±) | ±2.7 V ~ 6 V |
| Switch Circuit | SPDT |
| Supplier Device Package | 16-PDIP |
| Packaging | Tube |
| Package / Case | 16-DIP (0.300″, 7.62mm) |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 60 Ohm |
| Number of Channels | 2 |
| Multiplexer/Demultiplexer | 2:01 |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Features | Bi-Directional, Break-Before-Make, T-Switch Configuration |
| Detailed Description | Video Switch IC 2 Channel 16-PDIP |
| Base Part Number | MAX4567 |
| Applications | Video |
| -3db Bandwidth | 350MHz |
