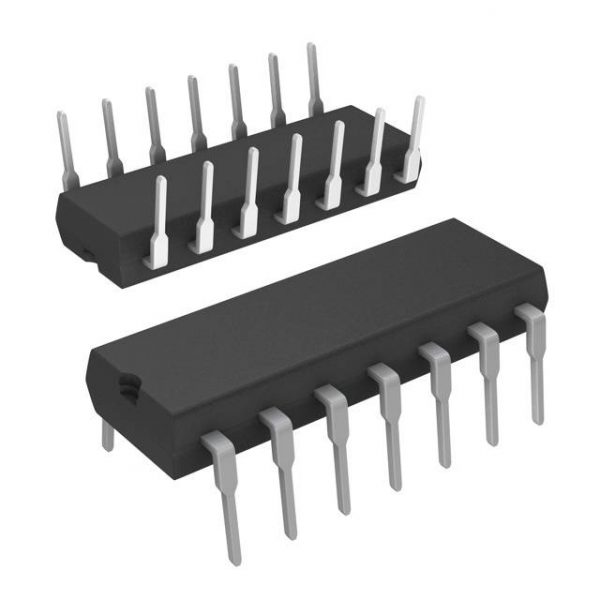

M74HCU04B1R
| Part Number | M74HCU04B1R |
|---|---|
| Description | IC INVERTER 6CH 6-INP 14DIP |
| Category | Integrated Circuits (ICs) |
| Manufacturer | STMicroelectronics |
| In Stock | 13101 |
| Datasheet | Download |
Description
| Manufacturer | STMicroelectronics |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply | 2 V ~ 6 V |
| Supplier Device Package | 14-DIP |
| Series | 74HCU |
| Packaging | Tube |
| Package / Case | 14-DIP (0.300″, 7.62mm) |
| Other Names | 497-1924-5 |
| Operating Temperature | -55°C ~ 125°C |
| Number of Inputs | 6 |
| Number of Circuits | 6 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Max Propagation Delay @ V CL | 10ns @ 6V, 50pF |
| Logic Type | Inverter |
| Logic Level – Low | 0.3 V ~ 1.2 V |
| Logic Level – High | 1.7 V ~ 4.8 V |
| Detailed Description | Inverter IC 6 Channel 14-DIP |
| Current – Quiescent (Max) | 1µA |
| Current – Output High, Low | 5.2mA, 5.2mA |
| Base Part Number | 74HCU04 |
