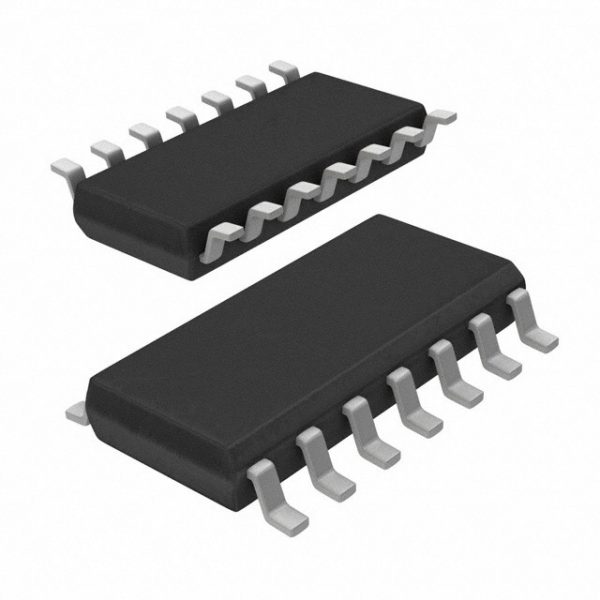

LV5768MZ-MPB-H
| Part Number | LV5768MZ-MPB-H |
|---|---|
| Description | IC REG CTRLR BUCK 14-MFPS |
| Category | Integrated Circuits (ICs) |
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| In Stock | 5837 |
| Datasheet | Download |
Description
| Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 8.5 V ~ 42 V |
| Topology | Buck |
| Synchronous Rectifier | Yes |
| Supplier Device Package | 14-MFPS |
| Packaging | Tube |
| Package / Case | 14-LSOP (0.173″, 4.40mm Width) |
| Output Type | Transistor Driver |
| Output Phases | 1 |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Outputs | 1 |
| Moisture Sensitivity Level | 3 (168 Hours) |
| Function | Step-Down |
| Frequency – Switching | 80kHz ~ 500kHz |
| Duty Cycle (Max) | 90% |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-MFPS |
| Control Features | Current Limit, Enable, Frequency Control, Soft Start |
| Clock Sync | No |
