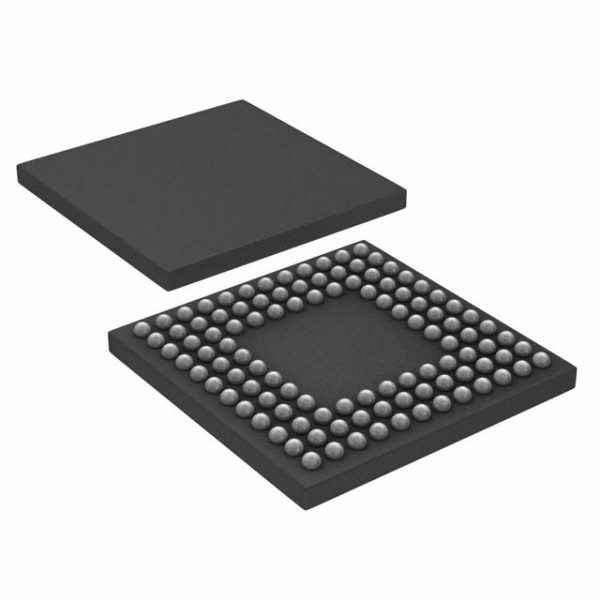

LM3S9D90-IBZ80-A1

Part Number	LM3S9D90-IBZ80-A1
Description	IC MCU 32BIT 512KB FLASH 108BGA
Category	Integrated Circuits (ICs)
Manufacturer	Luminary Micro / Texas Instruments
In Stock	11839
Datasheet	Download

Part Number

Description

Manufacturer	Luminary Micro / Texas Instruments
Lead / RoHS Status	Lead free / RoHS Compliant
Voltage – Supply (Vcc/Vdd)	1.235 V ~ 1.365 V
Supplier Device Package	108-BGA (10×10)
Speed	80MHz
Series	Stellaris® ARM® Cortex®-M3S 9000
RAM Size	96K x 8
Program Memory Type	FLASH
Program Memory Size	512KB (512K x 8)
Peripherals	Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Packaging	Tray
Package / Case	108-LFBGA
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Number of I/O	60
Moisture Sensitivity Level	3 (168 Hours)
Detailed Description	ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 9000 Microcontroller IC 32-Bit 80MHz 512KB (512K x 8) FLASH 108-BGA (10×10)
Data Converters	A/D 16x12b
Core Size	32-Bit
Core Processor	ARM® Cortex®-M3
Connectivity	CANbus, Ethernet, I²C, IrDA, LINbus, Microwire, QEI, SPI, SSI, UART/USART, USB OTG
Base Part Number	LM3S9D90
