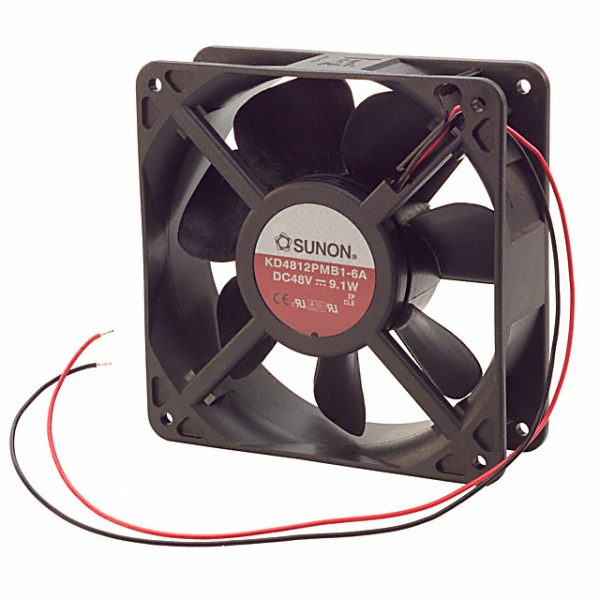

KD4812PMB1-6A

KD4812PMB1-6A

Part Number

KD4812PMB1-6A

Description

Manufacturer	Sunon
Lead / RoHS Status	Contains lead / RoHS non-compliant
Width	38.00mm
Weight	0.705 lb (319.78g)
Voltage Range	20 ~ 55VDC
Voltage – Rated	48VDC
Termination	2 Wire Leads
Static Pressure	0.300 in H2O (74.7 Pa)
Size / Dimension	Square – 120mm L x 120mm H
Series	KD
RPM	3000 RPM
Power (Watts)	9.10W
Other Names	259-1264 K48COPMB16A–RJ
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Noise	47.0 dB(A)
Fan Type	Tubeaxial
Current Rating	0.190A
Bearing Type	Ball
Approvals	CE, CUR, TUV, UL
Air Flow	136.0 CFM (3.81m³/min)
