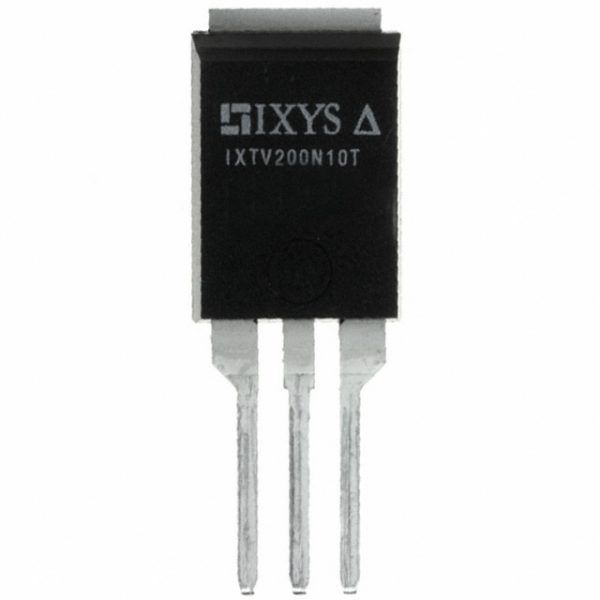

IXTV200N10T
| Part Number | IXTV200N10T |
|---|---|
| Description | MOSFET N-CH 100V 200A PLUS220 |
| Category | Discrete Semiconductor Products |
| Manufacturer | IXYS Corporation |
| In Stock | 17933 |
| Datasheet | Download |
Description
| Manufacturer | IXYS Corporation |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PLUS220 |
| Series | TrenchMV |
| Rds On (Max) @ Id, Vgs | 5.5 mOhm @ 50A, 10V |
| Power Dissipation (Max) | 550W (Tc) |
| Packaging | Tube |
| Package / Case | TO-220-3, Short Tab |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 9400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 152nC @ 10V |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 200A (Tc) 550W (Tc) Through Hole PLUS220 |
| Current – Drain (Id) @ 25°C | 200A (Tc) |
