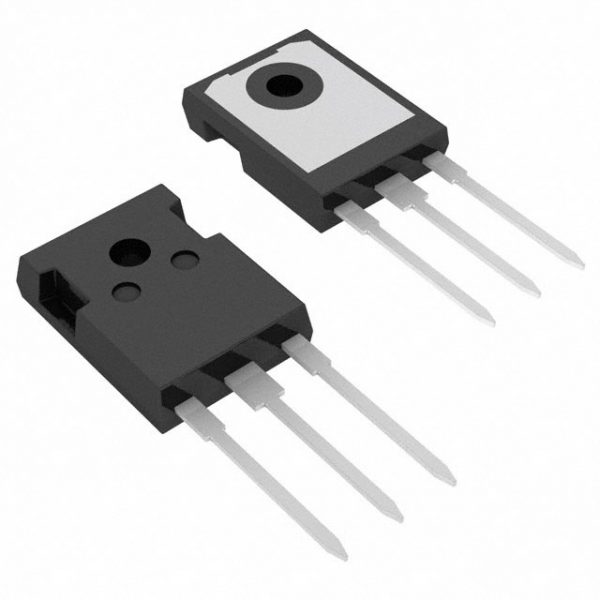

IXSH40N60A
| Part Number | IXSH40N60A |
|---|---|
| Description | IGBT 600V 75A 300W TO247AD |
| Category | Discrete Semiconductor Products |
| Manufacturer | IXYS Corporation |
| In Stock | 7214 |
| Datasheet | Download |
Description
| Manufacturer | IXYS Corporation |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 600V |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A |
| Test Condition | 480V, 40A, 2.7 Ohm, 15V |
| Td (on/off) @ 25°C | 55ns/400ns |
| Switching Energy | 2.5mJ (off) |
| Supplier Device Package | TO-247AD (IXSH) |
| Power – Max | 300W |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Other Names | Q1507012A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Input Type | Standard |
| Gate Charge | 190nC |
| Detailed Description | IGBT 600V 75A 300W Through Hole TO-247AD (IXSH) |
| Current – Collector Pulsed | 150A |
| Current – Collector (Ic) (Max) | 75A |
| Base Part Number | IXS*40N60 |
