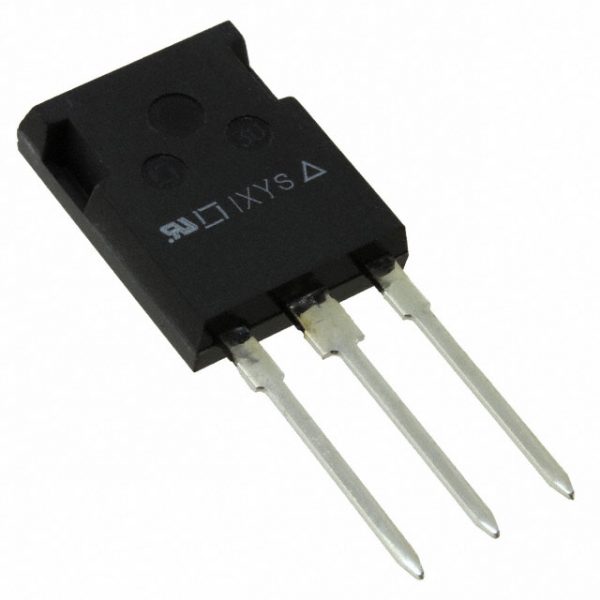

IXGR50N60BD1
| Part Number | IXGR50N60BD1 |
|---|---|
| Description | IGBT 600V 75A 250W ISOPLUS247 |
| Category | Discrete Semiconductor Products |
| Manufacturer | IXYS Corporation |
| In Stock | 9804 |
| Datasheet | Download |
Description
| Manufacturer | IXYS Corporation |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 600V |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 50A |
| Test Condition | 480V, 50A, 2.7 Ohm, 15V |
| Td (on/off) @ 25°C | 50ns/110ns |
| Switching Energy | 3mJ (off) |
| Supplier Device Package | ISOPLUS247 |
| Series | HiPerFAST |
| Reverse Recovery Time (trr) | 35ns |
| Power – Max | 250W |
| Packaging | Tube |
| Package / Case | ISOPLUS247 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Gate Charge | 110nC |
| Detailed Description | IGBT 600V 75A 250W Through Hole ISOPLUS247 |
| Current – Collector Pulsed | 200A |
| Current – Collector (Ic) (Max) | 75A |
| Base Part Number | IXG*50N60 |
