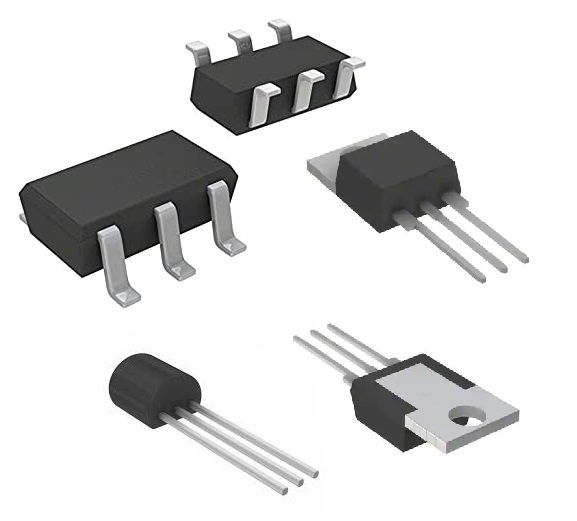

IXGM25N100A
| Part Number | IXGM25N100A |
|---|---|
| Description | POWER MOSFET TO-3 |
| Category | Discrete Semiconductor Products |
| Manufacturer | IXYS Corporation |
| In Stock | 15736 |
| Datasheet | Download |
Description
| Manufacturer | IXYS Corporation |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Collector Emitter | 1000V |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 25A |
| Test Condition | 800V, 25A, 33 Ohm, 15V |
| Td (on/off) @ 25°C | 100ns/500ns |
| Switching Energy | 5mJ (off) |
| Supplier Device Package | TO-204AE |
| Reverse Recovery Time (trr) | 200ns |
| Power – Max | 200W |
| Package / Case | TO-204AE |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Type | Standard |
| Gate Charge | 180nC |
| Detailed Description | IGBT 1000V 50A 200W Through Hole TO-204AE |
| Current – Collector Pulsed | 100A |
| Current – Collector (Ic) (Max) | 50A |
