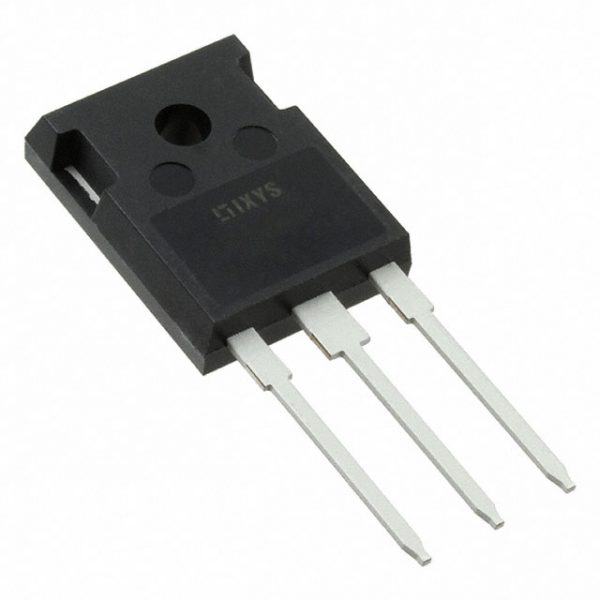

IXFH66N20Q
| Part Number | IXFH66N20Q |
|---|---|
| Description | MOSFET N-CH 200V 66A TO-247 |
| Category | Discrete Semiconductor Products |
| Manufacturer | IXYS Corporation |
| In Stock | 16290 |
| Datasheet | Download |
Description
| Manufacturer | IXYS Corporation |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 4V @ 4mA |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-247AD (IXFH) |
| Series | HiPerFET |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 33A, 10V |
| Power Dissipation (Max) | 400W (Tc) |
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 3700pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 105nC @ 10V |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 200V |
| Detailed Description | N-Channel 200V 66A (Tc) 400W (Tc) Through Hole TO-247AD (IXFH) |
| Current – Drain (Id) @ 25°C | 66A (Tc) |
