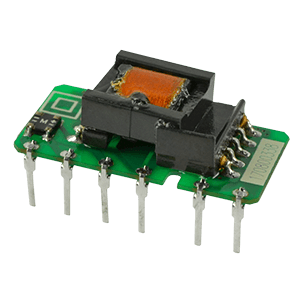

IWD505
| Part Number | IWD505 |
|---|---|
| Description | DC DC CONVERTER +/-5V 10W |
| Category | Power Supplies – Board Mount |
| Manufacturer | Bel |
| In Stock | 19881 |
| Datasheet | Download |
Description
| Manufacturer | Bel |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Voltage – Output 2 | -5V |
| Voltage – Output 1 | 5V |
| Voltage – Isolation | 500V |
| Voltage – Input (Min) | 4.65V |
| Voltage – Input (Max) | 5.5V |
| Type | Isolated Module |
| Size / Dimension | 2.00″ L x 1.00″ W x 0.40″ H (50.8mm x 25.4mm x 10.2mm) |
| Series | IWD |
| Power (Watts) | 10W |
| Packaging | Bulk |
| Package / Case | 5-DIP Module |
| Operating Temperature | -25°C ~ 85°C |
| Number of Outputs | 2 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Features | SCP |
| Efficiency | 82% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 4.65V – 5.5V Input |
| Current – Output (Max) | 1A, 1A |
| Applications | ITE (Commercial) |
