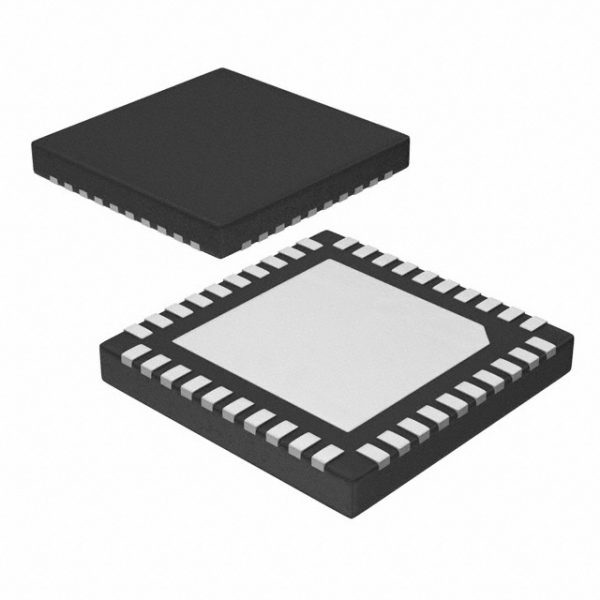

ISL9506HRZ
| Part Number | ISL9506HRZ |
|---|---|
| Description | IC REG CTRLR BUCK 40QFN |
| Category | Integrated Circuits (ICs) |
| Manufacturer | Intersil |
| In Stock | 17373 |
| Datasheet | Download |
Description
| Manufacturer | Intersil |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Voltage – Supply (Vcc/Vdd) | 4.75 V ~ 5.25 V |
| Topology | Buck |
| Supplier Device Package | 40-QFN (6×6) |
| Series | Robust Ripple Regulator (R3) |
| Packaging | Tube |
| Package / Case | 40-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Output Phases | 3 |
| Output Configuration | Positive |
| Operating Temperature | -10°C ~ 100°C (TA) |
| Number of Outputs | 3 |
| Moisture Sensitivity Level | 2 (1 Year) |
| Function | Step-Down |
| Frequency – Switching | 200kHz, 500kHz |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 40-QFN (6×6) |
| Control Features | Enable, Power Good |
| Clock Sync | No |
| Base Part Number | ISL9506 |
