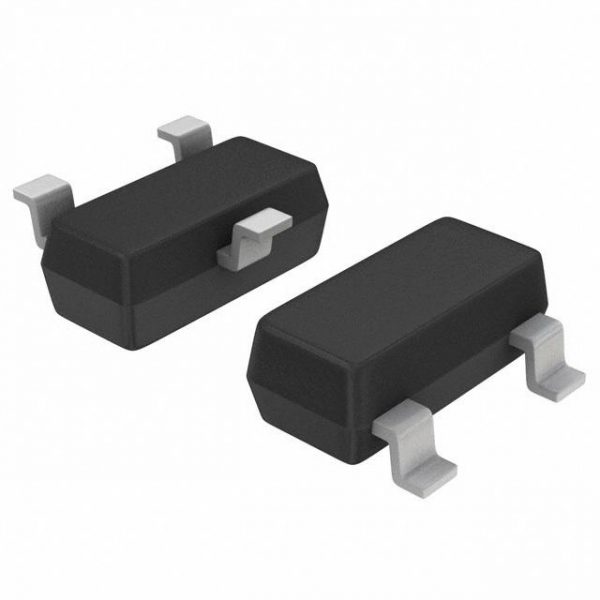

IRLML6402TR
| Part Number | IRLML6402TR |
|---|---|
| Description | MOSFET P-CH 20V 3.7A SOT-23 |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 10046 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Vgs (Max) | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | Micro3™/SOT-23 |
| Series | HEXFET® |
| Rds On (Max) @ Id, Vgs | 65 mOhm @ 3.7A, 4.5V |
| Power Dissipation (Max) | 1.3W (Ta) |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Other Names | *IRLML6402TR IRLML6402 IRLML6402-ND IRLML6402CT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 633pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 5V |
| FET Type | P-Channel |
| Drive Voltage (Max/Min Rds) | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 3.7A (Ta) 1.3W (Ta) Surface Mount Micro3™/SOT-23 |
| Current – Drain (Id) @ 25°C | 3.7A (Ta) |
