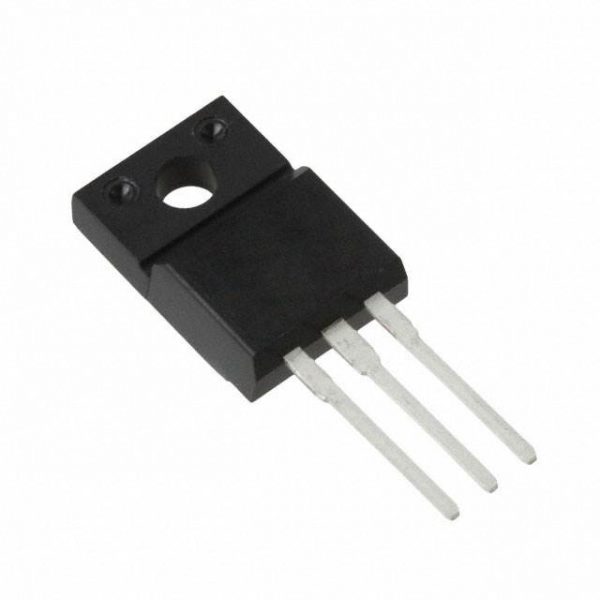

IRGI4056DPBF
| Part Number | IRGI4056DPBF |
|---|---|
| Description | IGBT 600V 18A 34W TO220FP |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 12635 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 9A |
| Test Condition | 400V, 9A, 22 Ohm, 15V |
| Td (on/off) @ 25°C | 34ns/84ns |
| Switching Energy | 59µJ (on), 177µJ (off) |
| Supplier Device Package | TO-220AB Full-Pak |
| Reverse Recovery Time (trr) | 72ns |
| Power – Max | 34W |
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Input Type | Standard |
| IGBT Type | Trench |
| Gate Charge | 25nC |
| Detailed Description | IGBT Trench 600V 18A 34W Through Hole TO-220AB Full-Pak |
| Current – Collector Pulsed (Icm) | 27A |
| Current – Collector (Ic) (Max) | 18A |
