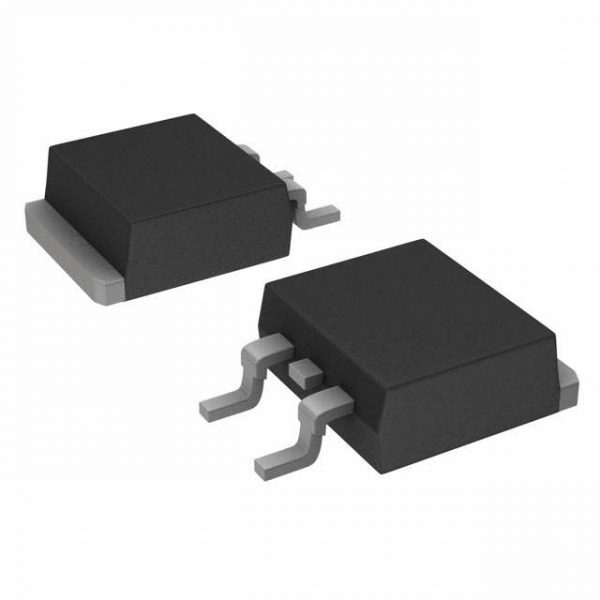

IRG4BC30W-S
| Part Number | IRG4BC30W-S |
|---|---|
| Description | IGBT 600V 23A 100W D2PAK |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 16644 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Contains lead / RoHS non-compliant |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 12A |
| Test Condition | 480V, 12A, 23 Ohm, 15V |
| Td (on/off) @ 25°C | 25ns/99ns |
| Switching Energy | 130µJ (on), 130µJ (off) |
| Supplier Device Package | D2PAK |
| Power – Max | 100W |
| Packaging | Tube |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | *IRG4BC30W-S |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Input Type | Standard |
| Gate Charge | 51nC |
| Detailed Description | IGBT 600V 23A 100W Surface Mount D2PAK |
| Current – Collector Pulsed (Icm) | 92A |
| Current – Collector (Ic) (Max) | 23A |
| Base Part Number | IRG4BC30W-S |
